Siena-2 Cappuccino
(1-Step)
|

|
The Schaerer Siena-2 Super Automatic
Espresso Machine is packed with features at an affordable price:
- 5 selection buttons
- Pre-selection for double
- Pre-selection grinder by-pass
- Single step cappuccino
- Digital display
Thanks to the new CPU-Platform, the Siena
offers limitless possibilities for distributors and coffee roasters,
taking full control of the programmability and limit access to certain
features.
|
|
|
Please click
here to order other Siena models...
|
| |
|

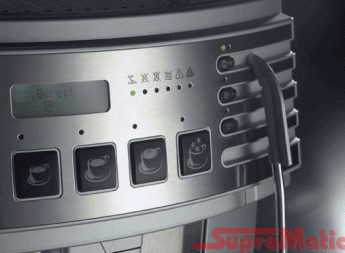

Operator Panel |
|
 |
Standard Button
Assignment:
- Espresso
- Double Espresso
- Long Espresso
- Cappuccino
- Hot Water
If you want any other configuration, please let us know
(ex. one button for milk foam only) |
|
Variations |
|
The Siena-2 can be ordered in a variety of Versions:
|
 |
|
|
 | On-Screen
Programming
 |
|
- Cup Size
- Strength
- Milk Foam Amount
- First Milk, First Espresso or Simultaneous
- Water Temperature
- Pre-Brew
- Product Counters
- Descaling, Auto-Off, Rinse, Cleaning
|
| |
|
| Extended
Programming |
 |
Connect to a PC via RS232 for extended
programming (only for distributors)
- Product Button Assignment
- Max Coffee Boiler Temperature
- Max Steam Boiler Temperature
- Tamping Pressure
- Pre-Brew Delay / Amount
- Temperature Compensation
- Accounting System / Prices
|
|
|
 |
Commercial
Components Used: |
 |
|
|
|
| |
 |
|
| |
Automatic Brew Group
|
| |
The Siena incorporates the same
brew unit like the larger Commercial Models Ambiente
and Celebration
|
| |
The brew chamber
capacity is an incredible 18 grams allowing the brew group to brew 2
cups in a single brewing cycle. |
|
 |
|
| |
Adjustable Grinder
|
|
Just like on the Ambiente and the
Celebration, the high precision grinder ensures a consistent grind. |
|
|
|
The adjustable coffee grinder is
made of hardened alloy and ensures guaranteed performance throughout the
life of the Siena. The low revolution grinder will not only limit the
noise emission but also limit the production of dust particles.
|
 |
Siena-2
Cappuccino Standard: |
 |
|
|
|
|
 |
|
| |
Single Step
Cappuccino
|
|
The Siena is the only machine in
its price class that can dispense foam and espresso simultaneously.
The Siena Single Step Cappuccino Solution is truly the most advanced
technology.
|
| |
|
|
|
 |
|
| |

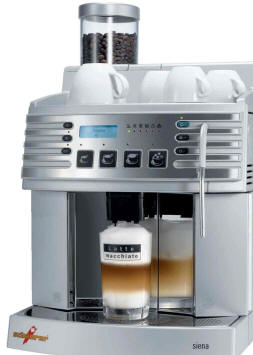

Single Step
Cappuccino
|
|
The Siena can be programmed to
dispense milk first and then espresso or espresso first and then milk or
simultaneous espresso and milk together like the picture illustrates. |
|
|
|
|
|
|
 |
|
| |
Double Products
|
|
Thanks to the 18g brew group, 2
products can be dispensed in a single brewing cycle. Just push the
double button followed by any product button and the Siena will
automatically dispense 2 products. |
|
|
|
 |
|
| |
Cup Warmer
|
|
Place the cups on the cup warmer
platform to ensure the cups are warm whenever needed. |
|
|
|
 |
|
| |

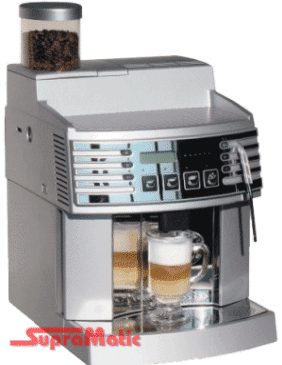

DeLuxe Bean Hopper
|
|
The oval transparent bean hopper
extension comes standard. |
|
|
 |
Siena
Cappuccino Options: |
 |
|
|
|
|
 |
|
| |
Milk Refrigerator
|
|
The mini fridge can hold approximately 1L of milk. |
| |
|
|
|
 |
|
| |
Coin or Token
Acceptor
|
|
The coin or token acceptor is ideal for self service
applications.
|
|
|
|
|
|
|
 |
|
| |

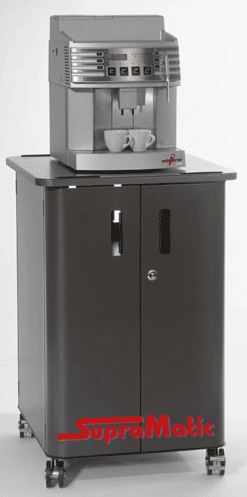

Base Extension &
Plumbing
|
|
The Siena can be
plumbed in and hooked up to a drain hose. |
|
|
| The Siena is also available without the single step cappuccino system.
Just use the traditional steam arm to foam milk.
The Opal and the Siena are the only machines enabling simultaneous
brewing and steaming thanks to the independent real stainless steel
boilers.
Customized self service panels are available to cover the programming
buttons and display your POS graphics and Logo.
|
 |
Technical
Specifications: |
 |
|
|
|
|
Dimensions WxHxD:
|
310 x 415 x 395 mm |
|
Power:
|
220V or 110V / 10A |
|
Weight:
|
18kg |
|
Colour:
|
Silver |
|
Max Cup Height:
|
80 mm |
|
Water Tank:
|
2.5 L or Plumbed-In |
|
Bean Hopper:
|
250 g |
|
)
